Beschreibung

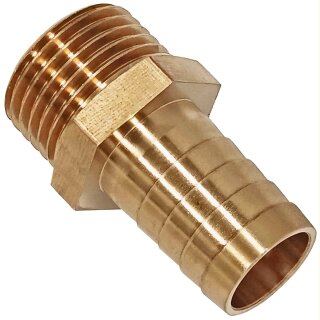

Für Schlauchschellenanbindung Außengewinde G-Gewinde zylindrisch warmgepresst, blank
|
Sortiernummer |
Außengewinde in Zoll und echter Durchmesser in Millimeter (Durchmesser zugehöriges Innengewinde) |
Tülle Außendurchmesser gemessen an der Spitze in Millimeter entspricht Zoll |
|
10 |
¼ Zoll = 13,2mm (11,5mm) |
6mm > 1/4 Zoll |
|
20 |
¼ Zoll = 13,2mm (11,5mm) |
ca.8mm |
|
30 |
¼ Zoll = 13,2mm (11,5mm) |
ca.10mm > 3/8 Zoll |
|
40 |
3/8 Zoll = 16,7mm (15mm) |
ca.8mm |
|
50 |
3/8 Zoll = 16,7mm (15mm) |
ca.10mm > 3/8 Zoll |
|
60 |
3/8 Zoll = 16,7mm (15mm) |
ca.13mm > 1/2 Zoll |
|
70 |
½ Zoll = 21mm (18,7mm) |
ca.6mm |
|
80 |
½ Zoll = 21mm (18,7mm) |
ca.8mm |
|
90 |
½ Zoll = 21mm (18,7mm) |
ca.10mm > 3/8 Zoll |
|
100 |
½ Zoll = 21mm (18,7mm) |
ca.13mm > 1/2 Zoll |
|
110 |
½ Zoll = 21mm (18,7mm) |
ca.16mm > 5/8 Zoll |
|
120 |
½ Zoll = 21mm (18,7mm) |
ca.19mm > 3/4 Zoll |
|
130 |
¾ Zoll = 26,4mm (24,2mm) |
ca.13mm > 1/2 Zoll |
|
140 |
¾ Zoll = 26,4mm (24,2mm) |
ca.19mm > 3/4 Zoll |
|
150 |
¾ Zoll = 26,4mm (24,2mm) |
ca.25mm > 1 Zoll |
|
160 |
1 Zoll = 33,3mm (30,3mm) |
ca.19mm > 3/4 Zoll |
|
170 |
1 Zoll = 33,3mm (30,3mm) |
ca.25mm > 1 Zoll |
|
180 |
1 Zoll = 33,3mm (30,3mm) |
ca.32mm > 1 1/4 Zoll |
|
190 |
1 ¼ Zoll = 41,9mm (39mm) |
ca.25mm > 1 Zoll |
|
200 |
1 ¼ Zoll = 41,9mm (39mm) |
ca.32mm > 1 1/4 Zoll |
|
210 |
1 ½ Zoll = 47,8mm (44,9mm) |
ca.38mm > 1 1/2 Zoll |
|
220 |
2 Zoll = 59,8mm (56,7mm) |
ca.50mm > 2 Zoll |
|
230 |
2 ½ Zoll = 75,2mm (72,3mm) |
ca.63mm > 2 1/2 Zoll |
|
240 |
3 Zoll = 87,8mm (85mm) |
ca.75mm > 3 Zoll |
|
250 |
4 Zoll = 113mm (110,1mm) |
102mm |
